When it comes to electrical installations in volatile environments, there is zero room for error. Industries dealing with explosive gases, dust, or harsh weather conditions require infrastructure that doesn’t just house wires but actively prevents catastrophes.

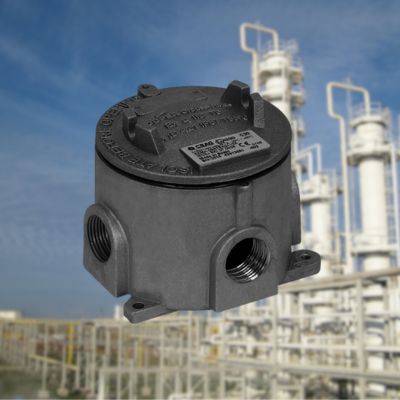

The Eaton Crouse-Hinds series Condulet C30 and C31 IEC Conduit Outlet Boxes are the industry standard for these high-stakes applications. In this article, we’ll explore why these components are essential for Zone 1 and Zone 2 hazardous areas and how they simplify complex wiring projects.
What are Condulet C30 & C31 Outlet Boxes?
The Condulet C30 and C31 series are specialized conduit outlet boxes designed to meet international IEC/ATEX standards. They serve as junction points, pull boxes, and mounting supports in threaded rigid conduit systems.
Whether you are changing the direction of a conduit run or providing an access point for conductor maintenance, these boxes ensure that any internal explosion is contained and won’t ignite the surrounding atmosphere.
Key Features & Specifications
Eaton has engineered the C30 and C31 series with several “fail-safe” design elements:
- Taper Threaded Hubs: These provide superior ground continuity, ensuring the entire conduit system remains safely grounded.
- Integrated Bushings: Smooth, integral hub bushings protect conductor insulation from damage during the wire-pulling process.
- IP67 Ingress Protection: These boxes are dust-tight and can withstand temporary immersion in water, making them ideal for offshore or heavy-washdown environments.
- Durable Construction: Made from light alloy with a natural finish, they offer excellent corrosion resistance without the heavy weight of traditional iron boxes.
- Standard Accessories: Every unit comes standard with a neoprene O-ring gasket for a watertight seal and a green ground screw.
Technical Snapshot:
| Feature | C30 Series | C31 Series |
| Hazardous Ratings | Zone 1, 2, 21, 22 | Zone 1, 2, 21, 22 |
| Temperature Range | -50ºC to +55ºC | -50ºC to +55ºC |
| Terminal Capacity | Up to 6mm² | Up to 10mm² |
| Protection | Ex d IIC T6 / IP67 | Ex d IIC T6 / IP67 |
Why Choose C30/C31 for Your Next Project?
1. Explosion-Proof Security
Certified to Ex d IIC T6, these boxes are specifically tested for environments where hydrogen, acetylene, and other highly flammable gases are present. The “flamepath” design ensures that if an internal arc occurs, the escaping gases are cooled sufficiently to prevent an external explosion.
2. Versatility in Configuration
Available in T-shape (3-way) and X-shape (4-way) configurations, the C30 and C31 series allow engineers to design complex conduit layouts. They also support DIN rail mounting and pillar terminals, making them adaptable for use as terminal junction boxes.
3. Ease of Maintenance
The threaded cover design allows for quick access to the internal wiring. This is crucial for industrial facilities where “down-time” translates to lost revenue. Being able to inspect or splice wires safely in a hazardous zone keeps your operations running smoothly.
Common Applications
- Oil & Gas Refineries: Protecting connections near volatile fuel sources.
- Chemical Processing Plants: Resisting corrosive fumes and preventing gas ignition.
- Mining Operations: Durable enough to withstand the dust and physical rigors of underground environments.
- Marine & Offshore: Utilizing the IP67 rating to protect against saltwater and heavy rain.
Final Thoughts
The Eaton Crouse-Hinds Condulet C30 and C31 series represent a critical investment in safety and reliability. By choosing IEC-compliant components, you aren’t just meeting a code; you are protecting your equipment, your facility, and your personnel.
