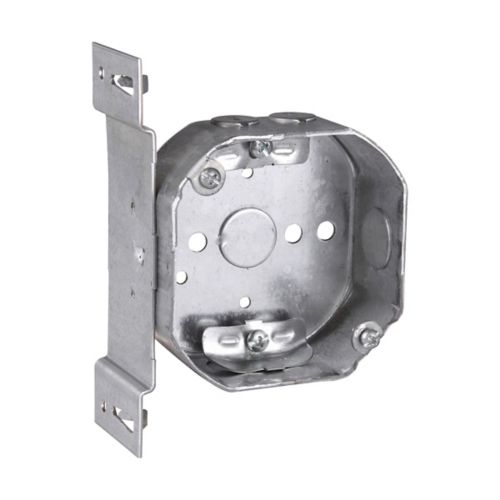

The Eaton Crouse-Hinds TP304 Octagon Outlet Box is a robust and reliable electrical enclosure designed to facilitate secure wiring connections in various electrical installations. Constructed from high-quality steel, this outlet box is ideal for residential, commercial, and industrial applications, ensuring durability and longevity. Its 15.5 cubic inch capacity, integrated non-metallic (NM) cable clamps, and multiple knockouts provide flexibility for diverse wiring configurations.
Description
Key Features & Benefits
- Durable Steel Construction: Ensures long-lasting performance and structural integrity in various environments.
- 15.5 Cubic Inch Capacity: Provides adequate space for secure wire connections, minimizing installation challenges.
- Integrated NM Cable Clamps: Facilitate easy and secure attachment of non-metallic cables, streamlining the installation process.
- Multiple Knockouts for Flexible Wiring Options:
- Side Knockouts: One 1/2-inch opening accommodates various conduit sizes.
- Bottom Knockout: One 1/2-inch opening offers additional wiring configurations.
- Fixture Rated: Suitable for supporting ceiling or wall-mounted lighting fixtures, enhancing versatility.
- UL Listed: Meets industry-standard safety and reliability requirements, ensuring compliance with electrical codes.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | TP304 |
| Material | Steel |
| Shape | Octagon |
| Dimensions | 4 inches (Width) x 1-1/2 inches (Depth) |
| Capacity | 15.5 cubic inches |
| Side Knockouts | One 1/2-inch |
| Bottom Knockouts | One 1/2-inch |
| Cable Knockouts | Four |
| Bracket Style | S, Set 1/2-inch |
| Cable Clamps | Four NM cable clamps |
| Fixture Rated | Yes |
| Certifications | UL 514A/514B/514C |
| Applicable Standards | Federal Specification W-J-800E, NEMA OS-1 |
Ideal Applications
- Residential Installations: Suitable for ceiling or wall-mounted light fixtures in homes, apartments, and condominiums.
- Commercial Buildings: Ideal for offices, hotels, and retail stores requiring reliable junction box wiring.
- Industrial Facilities: Appropriate for warehouses, factories, and plants with high electrical demands.
- New Construction & Retrofits: Ensures compliance with safety codes in both new installations and renovation projects.
