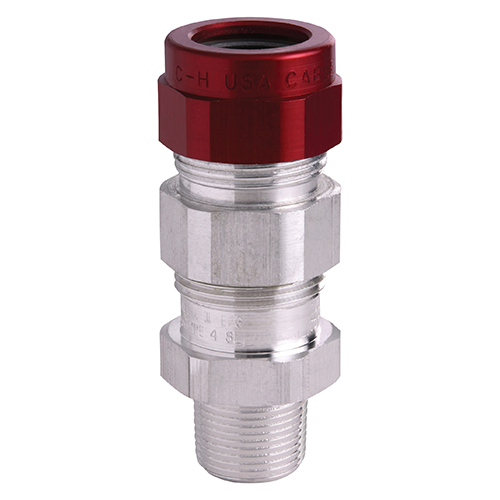

Discover the TMCX Armored Cable Glands by Eaton, designed for secure and reliable cable termination in hazardous and demanding environments. These glands are ideal for use with metal-clad (MC, MC-HL) and tray cables (TC), offering superior protection against explosions, moisture, dust, and mechanical stress.
Description
Key Features of TMCX Armored Cable Glands
- Grounding Continuity: Stainless steel copper-plated spring ensures grounding continuity for MC cables.
- Explosionproof Seal: Provides an explosionproof compound seal on conductors and a watertight seal on the outer sheath of the cable.
- Cold Shrink Kit: Optional Cold Shrink™ kit for extra protection in aggressive environments.
- Epoxy Sealing Compound: Supplied with TSC epoxy sealing compound for enhanced sealing.
- NPT Threads: Available with NPT threads for easy installation.
Cable Types Supported
- Metal-Clad Cable (MC, MC-HL)
- Tray Cable (TC)
Standard Material
- Body: Aluminum with neoprene seal.
- Optional Finishes:
- Brass Construction (BR)
- Nickel-Plated Finish (NP)
Certifications & Compliances
- Class I, Division 1, Groups A, B, C, D: Suitable for hazardous locations with explosive gases.
- Class II, Groups E, F, G: Suitable for combustible dust environments.
- Class III: Suitable for ignitable fibers.
- UL Listed: UL File No. E122485
- CSA Listed: LR13046
- NEMA 4, IP56: Protection against dust and water ingress.
Operating Temperature Range
- -25°C to +60°C: Designed to perform in a wide range of environmental conditions.
TMCX Armored Cable Glands Product Table
| NPT Thread Size | Catalog # | Min. Armor Range (in) | Max. Armor Range (in) | Min. Outer Sheath (in) | Max. Outer Sheath (in) | Across Flats (in) | Across Corners (G) (in) | Length (L) (in) | Thread Length (B) (in) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | TMCX165 | 0.44 | 0.65 | 0.49 | 0.78 | 1.25 | 1.38 | 2.63 | 0.75 |
| 3/4 | TMCX285 | 0.80 | 0.85 | 0.65 | 1.00 | 1.50 | 1.83 | 2.88 | 0.78 |
| 1 | TMCX3112 | 0.80 | 1.12 | 0.85 | 1.31 | 1.88 | 2.00 | 3.13 | 0.94 |
| 1 1/4 | TMCX4140 | 1.10 | 1.40 | 1.15 | 1.82 | 2.25 | 2.44 | 3.13 | 0.97 |
| 1 1/2 | TMCX5161 | 1.33 | 1.61 | 1.38 | 1.78 | 2.50 | 2.75 | 3.38 | 0.97 |
| 2 | TMCX5096 | 1.57 | 2.08 | 1.83 | 2.31 | 3.25 | 3.90 | 5.31 | 1.00 |
| 2 1/2 | TMCX7247 | 1.93 | 2.47 | 1.99 | 2.72 | 3.75 | 4.00 | 6.06 | 1.44 |
| 3 | TMCX8302 | 2.45 | 3.02 | 2.52 | 3.28 | 4.50 | 4.88 | 6.06 | 1.44 |
| 3 1/2 | TMCX9352 | 2.95 | 3.52 | 3.02 | 3.78 | 5.00 | 5.38 | 7.75 | 1.63 |
| 4 | TMCX10402 | 3.50 | 4.02 | 3.58 | 4.28 | 5.50 | 5.88 | 8.31 | 1.63 |
All dimensions are in inches.
Why Choose TMCX Armored Cable Glands?
- Explosionproof Design: Ideal for hazardous locations with explosive gases, dust, or fibers.
- Durability: Aluminum construction with optional brass or nickel-plated finishes for enhanced corrosion resistance.
- Versatility: Compatible with MC, MC-HL, and TC cables.
- Safety: Meets UL, CSA, NEMA, and IP standards for reliable performance in hazardous and wet locations.
- Easy Installation: NPT threads ensure quick and secure installation.
Applications
TMCX Armored Cable Glands are ideal for:
- Hazardous Locations: Class I, Division 1 areas with explosive gases.
- Industrial Facilities: Secure cable termination for machinery and equipment.
- Combustible Dust Environments: Class II areas with combustible dust.
- Outdoor Installations: Provides protection against weather conditions.
