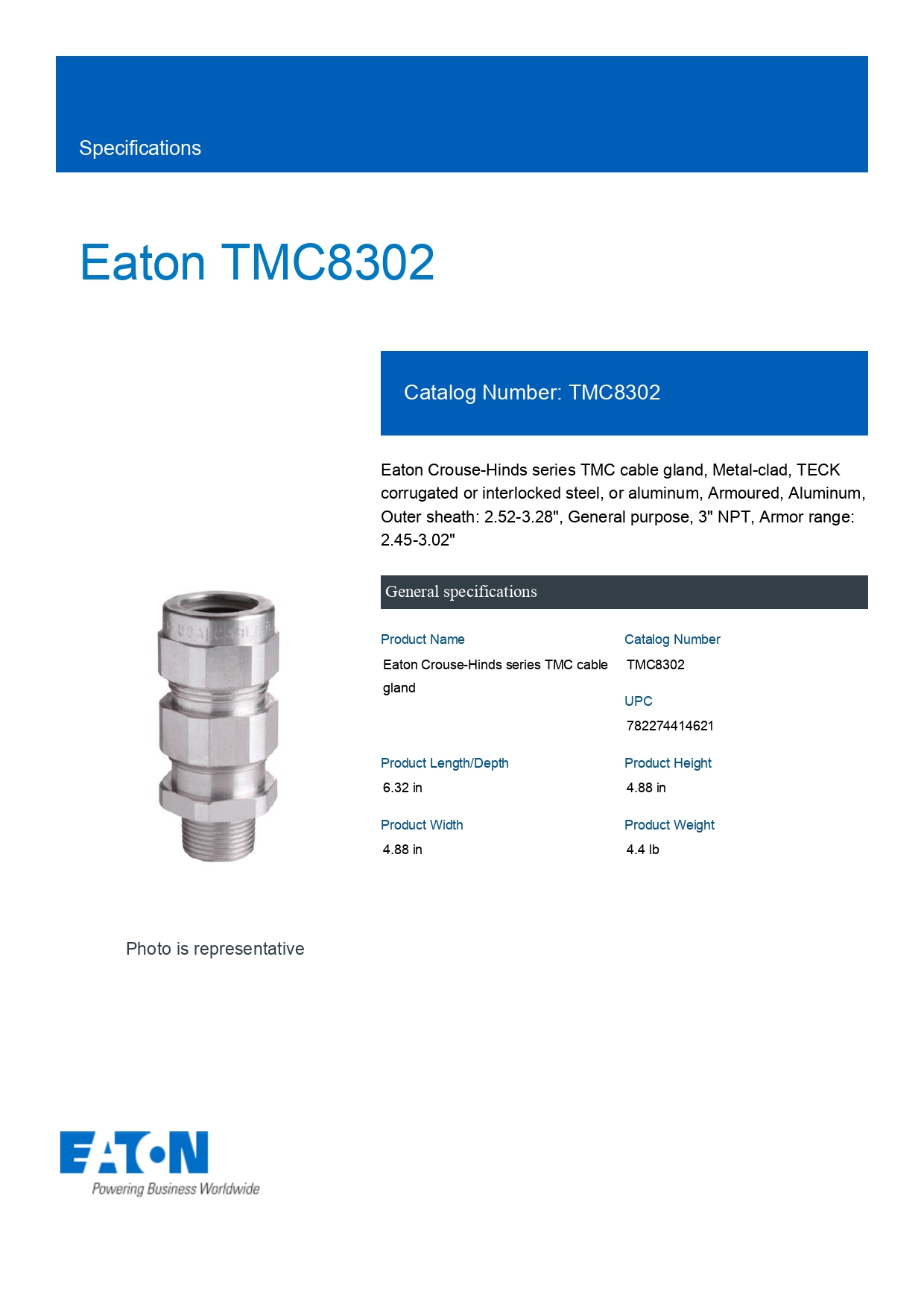

The TMC8302 is a high-performance cable gland from Eaton’s Crouse-Hinds series. It’s designed to secure and protect metal-clad, TECK corrugated, or interlocked steel/aluminum cables, providing a reliable solution for various industrial applications.

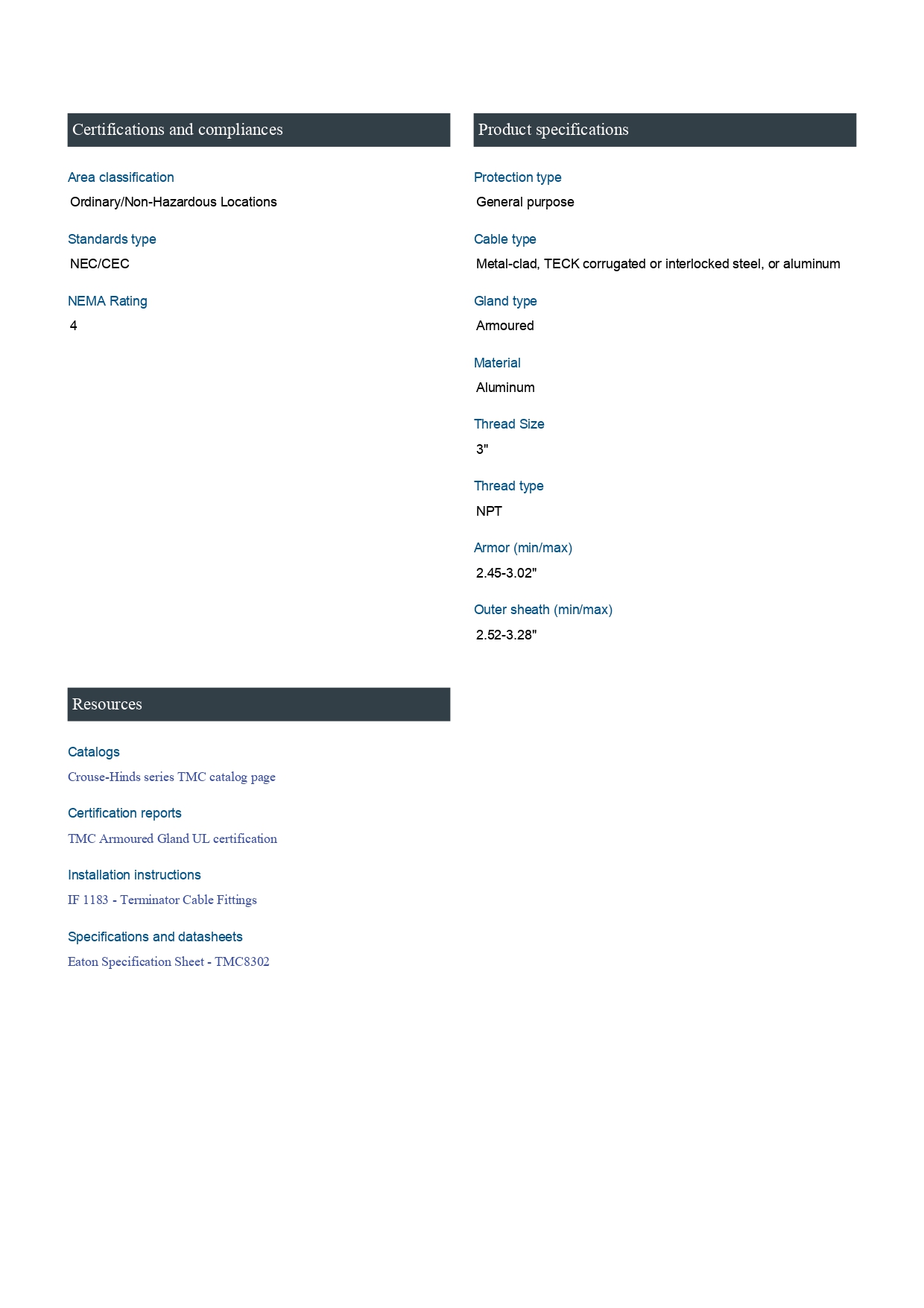

Key Specifications
- Material: Aluminum
- Thread Size: 3 inches NPT
- Outer Sheath Diameter Range: 2.52 to 3.28 inches
- Armor Diameter Range: 2.45 to 3.02 inches
- Application: General-purpose use in ordinary/non-hazardous locations
- Certification: Complies with NEC/CEC standards and has a NEMA 4 rating
Dimensions and Weight
- Length/Depth: 6.32 inches
- Height: 4.88 inches
- Width: 4.88 inches
- Weight: 4.4 lbs
Features
- Versatility: Ideal for different cable types, including metal-clad, TECK corrugated, and interlocked steel or aluminum.
- Durability: Constructed from high-quality aluminum, it ensures long-term performance and resilienc.
- Protection: Offers robust mechanical protection and maintains a watertight seal, safeguarding electrical connections from environmental factors.
Applications The TMC8302 is perfect for use in industrial settings, providing an essential component in the power distribution network. It ensures that cables remain secure and protected, thereby enhancing safety and efficiency in operations.
