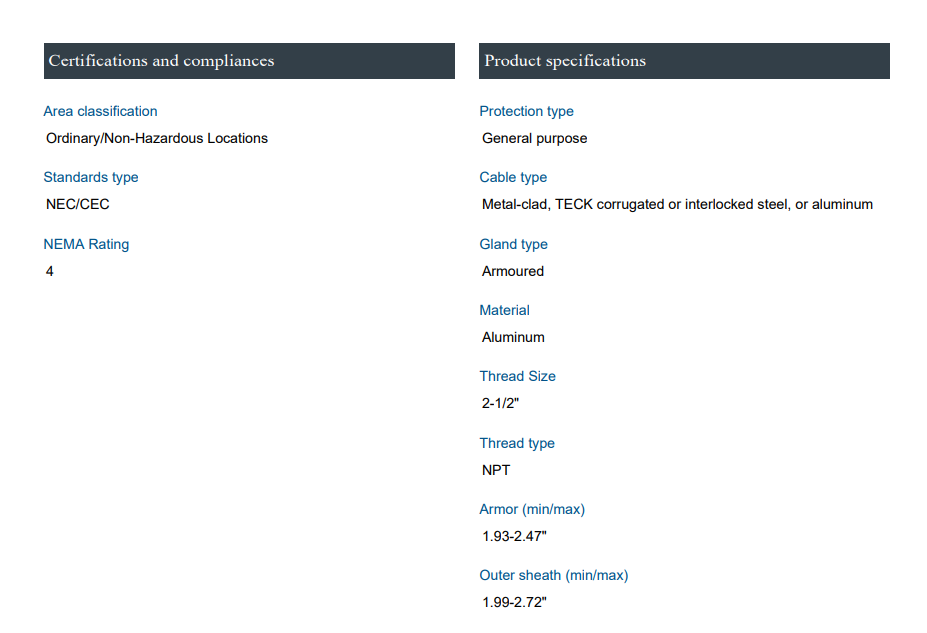

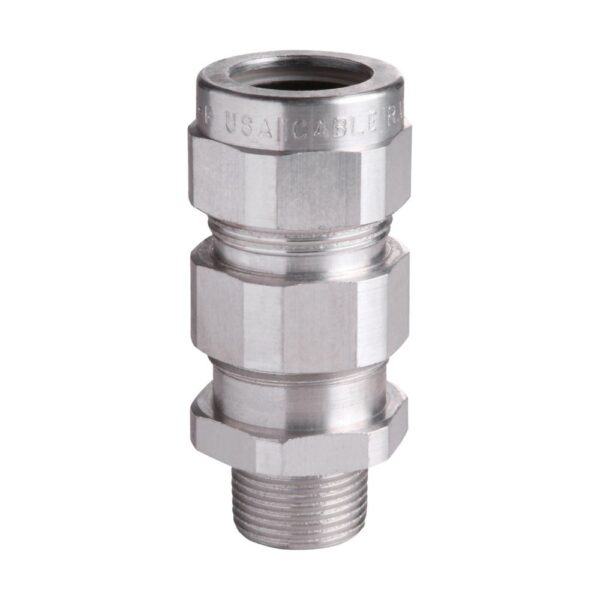

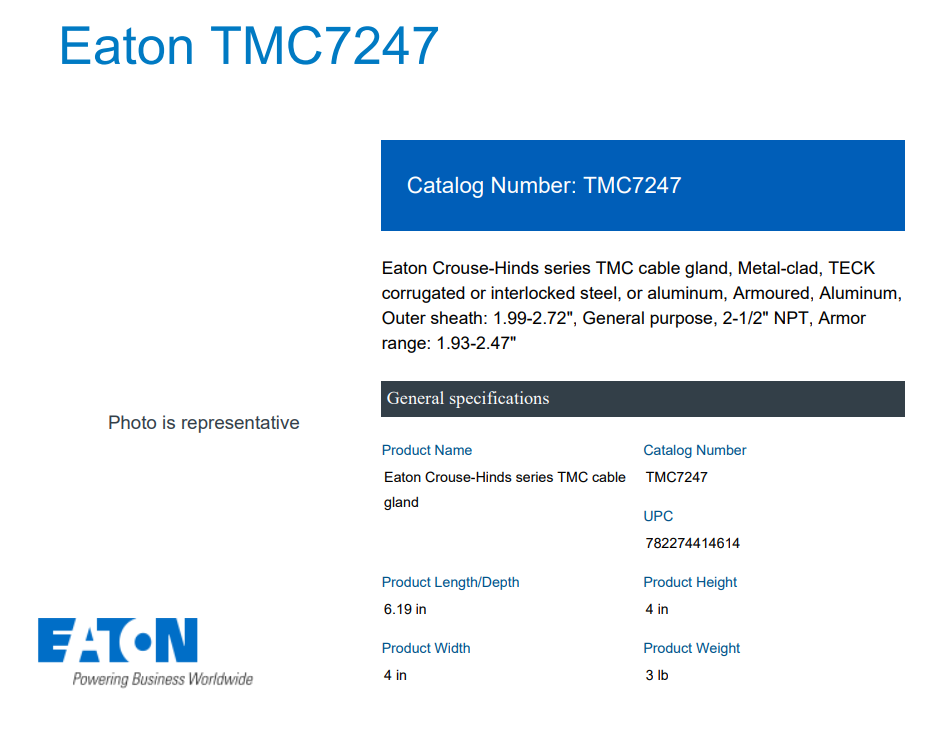

The TMC7247 is another model from Eaton’s Crouse-Hinds series, designed for armored cable applications. Here are the details:
- Type: Armored Cable Gland
- Material: Aluminum
- Outer Sheath Diameter: Range between 1.99 to 2.72 inches
- Armor Range: Between 1.93 to 2.47 inches
- Thread Size: 2-1/2 inches NPT
- Application: Used with metal-clad, TECK corrugated, or interlocked steel and aluminum cables
- Usage: Suitable for general-purpose use
- Certifications: Meets NEC/CEC standards and has a NEMA 4 rating
