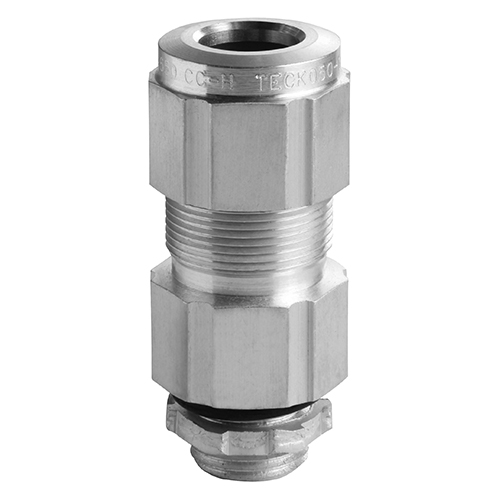

Discover the TECK Armored Cable Glands by Eaton, designed for superior performance in demanding environments. Whether you need reliable grounding, watertight seals, or corrosion resistance, our TECK cable glands are engineered to meet your needs.
Description
Key Features of TECK Armored Cable Glands
- Grounding Continuity: Stainless steel copper-plated spring ensures reliable grounding for TECK cables.
- Watertight Seal: Protects against moisture with a secure seal on the cable’s outer sheath.
- O-Ring Seal: Integral o-ring on entry threads for added protection.
- Cold Shrink Kit: Optional Cold Shrink™ kit for extra protection in aggressive environments.
- PVC Coating: Available in Canada for enhanced durability (refer to Plasti-Bond catalog for details).
Cable Types Supported
- TECK corrugated or interlocked steel or aluminum cables.
Material Options
- Standard: Aluminum body with neoprene seal.
- Optional: Steel and stainless steel bodies for enhanced durability.
Certifications & Compliances
- Class I, II (Groups E, F, G), III
- CSA Listed: LR13046
- CSA Type 4
- IP56 Rating: Protection against dust and water ingress.
Operating Temperature Range
- -25°C to +60°C: Suitable for a wide range of environmental conditions.
TECK Armored Cable Glands Product Table
| NPT Thread Size | Catalog # (Aluminum) | Catalog # (Steel) | Catalog # (Stainless Steel) | Min. Cable Dia. (in) | Max. Cable Dia. (in) | Across Flats (in) | Across Corners (G) (in) | Length (L) (in) | Thread Length (B) (in) |
|---|---|---|---|---|---|---|---|---|---|
| 1/2 | TECK050 1 | TECK050 1S | TECK050 1SS | 0.41 | 0.57 | 1.25 | 1.35 | 2.30 | 0.63 |
| 3/4 | TECK050 2 | TECK050 2S | TECK050 2SS | 0.49 | 0.68 | 1.50 | 1.50 | 2.30 | 0.63 |
| 1 | TECK050 3 | TECK050 3S | TECK050 3SS | 0.61 | 0.80 | 1.50 | 1.60 | 2.30 | 0.63 |
| 1 1/4 | TECK050 4 | TECK050 4S | TECK050 4SS | 0.71 | 0.90 | 1.50 | 1.60 | 2.30 | 0.63 |
| 1 1/2 | TECK075 5 | TECK075 5S | TECK075 5SS | 0.77 | 0.98 | 2.00 | 2.13 | 2.50 | 0.63 |
| 2 | TECK100 7 | TECK100 7S | TECK100 7SS | 1.08 | 1.29 | 2.25 | 2.40 | 2.53 | 0.75 |
| 2 1/2 | TECK125 8 | TECK125 8S | – | 1.24 | 1.34 | 3.00 | 3.13 | 3.50 | 0.80 |
| 3 | TECK150 11 | TECK150 11S | – | 1.59 | 1.88 | 3.75 | 3.60 | 3.80 | 0.80 |
| 4 | TECK400 24 | TECK400 24S | TECK400 24SS | 3.60 | 3.93 | 6.13 | 6.50 | 5.00 | 1.40 |
All dimensions are in inches.
Why Choose TECK Armored Cable Glands?
- Durability: Built to withstand harsh environments with optional steel and stainless steel materials.
- Versatility: Compatible with a wide range of cable types and sizes.
- Certified Safety: Meets CSA and IP56 standards for reliable performance.
- Easy Installation: Designed for quick and secure installation.
Applications
TECK Armored Cable Glands are ideal for:
- Industrial facilities
- Hazardous locations
- Outdoor installations
- Aggressive environments requiring extra protection
