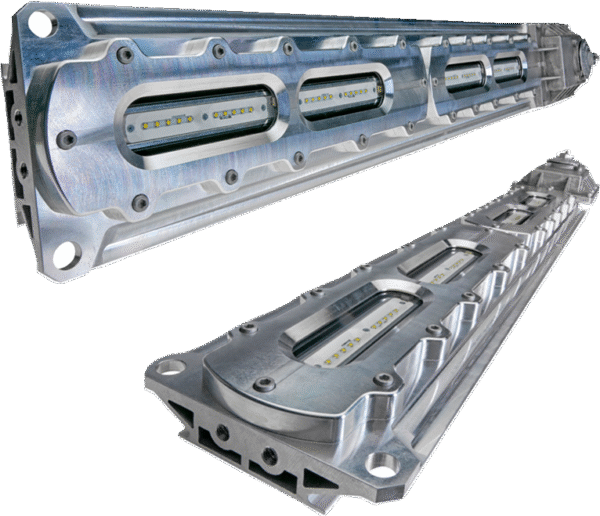

Hazard-Gard XPLA Explosionproof Linear LED Light Fixtures

Certifications and compliances

NEC/CEC

• Class I, Division 1, Groups C, D
• Class II, Division 1, Groups E, F, G
• Class III
• NEMA 4X, IP66
• Marine and wet locations
• Paint spray rated

UL standards

• UL50E – Enclosures for Electrical Equipment, Environmental Considerations
• UL844 – Electrical Fixture Hangers for Hazardous Locations
• UL924 – Emergency Lighting and Power Equipment
• UL1598 – Luminaire
• UL1598A – Luminaire for Installation on Marine Vessels
• UL8750 – Standard for Light Emitting Diode (LED) Equipment for use in Lighting Products

CSA standard

• C22.2 Nos. 137, 250

• Single model certified for use in Class I, Division 1 and Class II, Division 1 harsh and hazardous applications
• 60,000 hour lifetime at 55°C ambient; 100,000+ hour lifetime at 40°C and below
• High efficacy: up to 139 LPW (XPLA4 UNV34)
• 5000K CCT, 72 CRI
• -25°C to +55°C ambient operating temperature (standard fixture only)
• Low profile fixture (less than 5″ height) – perfect for mounting in confined spaces or low height areas
• Flush and swivel mount options
• Wide optics (120° beam spread) maximizes illumination on wall panels
• Four points of secondary retention and loop feed wiring
• Ingress protection from hose down water or diesel fuel in harsh operational conditions – passed 2,000 PSI high pressure test
• 5G 3-axis vibration
• 4kV line to line, 6kV line to earth surge protection
• 5 year warranty – standard unit; 1 year warranty – emergency battery unit

• Housing – copper-free aluminum; Corro-free epoxy powder coat (optional)
• Lens – glass; diffused glass (optional)
