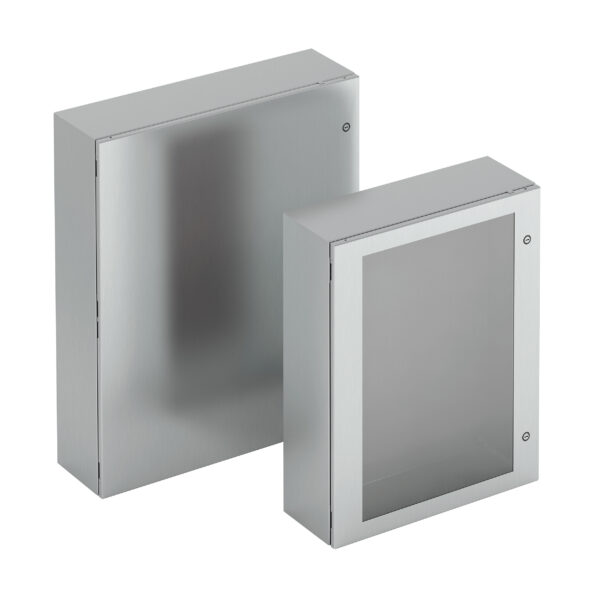

The B-Line Series Type 4X Panel Enclosures are designed for both indoor and outdoor use in non-hazardous locations, offering superior protection against corrosion, rain, sleet, snow, dust, and windblown dust. These enclosures are constructed from stainless steel, making them ideal for harsh environments where corrosion resistance is critical. Below is the full data table for the B-Line Series Type 4X Panel Enclosures, including product details, sizes, materials, and ordering information.
Description
Product Overview
- Applications: Indoor and outdoor use in non-hazardous locations, electrical panel enclosures, control panels, and instrumentation.
- Certifications: UL Listed, Type 4X (UL 50), NEMA 4X.
- Materials: Stainless steel (304 or 316L) with a polished or brushed finish.
- Protection: Protects against corrosion, rain, sleet, snow, dust, and windblown dust.
- Mounting: Wall-mounted or free-standing options available.
Enclosure Types
| Type | Description |
|---|---|
| Standard Enclosures | Wall-mounted or free-standing, available in various sizes and configurations. |
| Extended Depth | Enclosures with extended depth for additional space for wiring and components. |
| Gasketed Door | Ensures a tight seal for protection against environmental elements. |
Material and Finish
- Material: Stainless steel (304 or 316L).
- Finish: Polished or brushed finish (standard: brushed).
- Gasket: Neoprene gasket for a tight seal.
Ordering Information
The catalog numbers for B-Line Series Type 4X Panel Enclosures are structured as follows:
Example Part Number: B4X12H4X
| Part Number Section | Description |
|---|---|
| B4X | Series (B-Line Series Type 4X) |
| 12 | Size (Height x Width in inches) |
| H | Depth (H = Standard depth, D = Extended depth) |
| 4X | Door type (4X = Gasketed door) |
Enclosure Sizes and Catalog Numbers
Below is the complete list of Catalog Numbers for B-Line Series Type 4X Panel Enclosures, organized by size and depth.
Standard Depth Enclosures (H)
| Enclosure Size (H x W x D) | Catalog # | Dimensions (in.) | Weight (lbs.) |
|---|---|---|---|
| 12 x 12 x 6 | B4X12H4X | 12 x 12 x 6 | 20 |
| 16 x 12 x 6 | B4X16H4X | 16 x 12 x 6 | 24 |
| 16 x 16 x 6 | B4X16H4X | 16 x 16 x 6 | 28 |
| 20 x 16 x 6 | B4X20H4X | 20 x 16 x 6 | 32 |
| 24 x 16 x 6 | B4X24H4X | 24 x 16 x 6 | 36 |
| 24 x 20 x 6 | B4X24H4X | 24 x 20 x 6 | 40 |
| 30 x 20 x 6 | B4X30H4X | 30 x 20 x 6 | 46 |
| 36 x 24 x 6 | B4X36H4X | 36 x 24 x 6 | 56 |
| 42 x 30 x 6 | B4X42H4X | 42 x 30 x 6 | 66 |
| 48 x 36 x 6 | B4X48H4X | 48 x 36 x 6 | 76 |
Extended Depth Enclosures (D)
| Enclosure Size (H x W x D) | Catalog # | Dimensions (in.) | Weight (lbs.) |
|---|---|---|---|
| 12 x 12 x 8 | B4X12D4X | 12 x 12 x 8 | 24 |
| 16 x 12 x 8 | B4X16D4X | 16 x 12 x 8 | 28 |
| 16 x 16 x 8 | B4X16D4X | 16 x 16 x 8 | 32 |
| 20 x 16 x 8 | B4X20D4X | 20 x 16 x 8 | 36 |
| 24 x 16 x 8 | B4X24D4X | 24 x 16 x 8 | 40 |
| 24 x 20 x 8 | B4X24D4X | 24 x 20 x 8 | 44 |
| 30 x 20 x 8 | B4X30D4X | 30 x 20 x 8 | 50 |
| 36 x 24 x 8 | B4X36D4X | 36 x 24 x 8 | 60 |
| 42 x 30 x 8 | B4X42D4X | 42 x 30 x 8 | 70 |
| 48 x 36 x 8 | B4X48D4X | 48 x 36 x 8 | 80 |
Accessories
| Accessory | Catalog # | Description |
|---|---|---|
| Mounting Brackets | B4XMB | Wall-mounting brackets for standard enclosures. |
| Door Hinges | B4XDH | Replacement door hinges for Type 4X enclosures. |
| Door Latches | B4XDL | Replacement door latches for Type 4X enclosures. |
| Grounding Kits | B4XGK | Grounding kits for secure electrical grounding. |
| Ventilation Kits | B4XVK | Ventilation kits for heat dissipation in enclosed environments. |
Technical Specifications
- Material: Stainless steel (304 or 316L) with polished or brushed finish.
- Protection Rating: Type 4X (UL 50), NEMA 4X.
- Temperature Range: -20°C to +40°C (-4°F to +104°F).
- Door Seal: Neoprene gasket for a tight seal.
- Mounting: Wall-mounted or free-standing options available.
Certifications
- UL Listed: Type 4X (UL 50).
- NEMA 4X: Protects against corrosion, rain, sleet, snow, dust, and windblown dust.
Additional Features
- Gasketed Door: Ensures a tight seal for protection against environmental elements.
- Extended Depth: Available for enclosures requiring additional space for wiring and components.
- Mounting Options: Wall-mounted or free-standing configurations.
- Corrosion Resistance: Stainless steel construction for superior corrosion resistance in harsh environments.
This full data table provides a comprehensive overview of the B-Line Series Type 4X Panel Enclosures, including product details, sizes, materials, and ordering information. It is designed to help customers easily select and order the appropriate enclosure for their needs.
