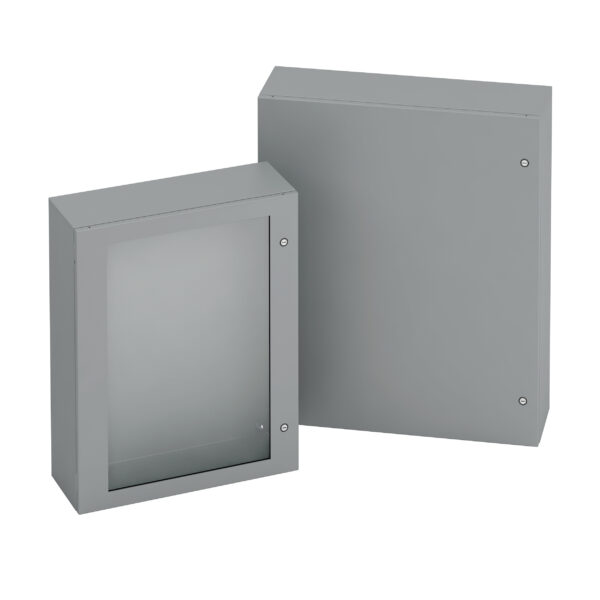

The B-Line Series Type 4 Panel Enclosures are designed for both indoor and outdoor use in non-hazardous locations. They provide robust protection against rain, sleet, snow, dust, and windblown dust, making them ideal for harsh environments. Below is the full data table for the B-Line Series Type 4 Panel Enclosures, including product details, sizes, materials, and ordering information.
Description
Product Overview
- Applications: Indoor and outdoor use in non-hazardous locations, electrical panel enclosures, control panels, and instrumentation.
- Certifications: UL Listed, Type 4 (UL 50), NEMA 4.
- Materials: Cold-rolled steel with a durable powder-coated finish.
- Protection: Protects against rain, sleet, snow, dust, and windblown dust.
- Mounting: Wall-mounted or free-standing options available.
Enclosure Types
| Type | Description |
|---|---|
| Standard Enclosures | Wall-mounted or free-standing, available in various sizes and configurations. |
| Extended Depth | Enclosures with extended depth for additional space for wiring and components. |
| Gasketed Door | Ensures a tight seal for protection against environmental elements. |
Material and Finish
- Material: Cold-rolled steel.
- Finish: Durable powder-coated finish (standard color: light gray).
- Gasket: Neoprene gasket for a tight seal.
Ordering Information
The catalog numbers for B-Line Series Type 4 Panel Enclosures are structured as follows:
Example Part Number: B412H4
| Part Number Section | Description |
|---|---|
| B4 | Series (B-Line Series Type 4) |
| 12 | Size (Height x Width in inches) |
| H | Depth (H = Standard depth, D = Extended depth) |
| 4 | Door type (4 = Gasketed door) |
Enclosure Sizes and Catalog Numbers
Below is the complete list of Catalog Numbers for B-Line Series Type 4 Panel Enclosures, organized by size and depth.
Standard Depth Enclosures (H)
| Enclosure Size (H x W x D) | Catalog # | Dimensions (in.) | Weight (lbs.) |
|---|---|---|---|
| 12 x 12 x 6 | B412H4 | 12 x 12 x 6 | 18 |
| 16 x 12 x 6 | B416H4 | 16 x 12 x 6 | 22 |
| 16 x 16 x 6 | B416H4 | 16 x 16 x 6 | 26 |
| 20 x 16 x 6 | B420H4 | 20 x 16 x 6 | 30 |
| 24 x 16 x 6 | B424H4 | 24 x 16 x 6 | 34 |
| 24 x 20 x 6 | B424H4 | 24 x 20 x 6 | 38 |
| 30 x 20 x 6 | B430H4 | 30 x 20 x 6 | 44 |
| 36 x 24 x 6 | B436H4 | 36 x 24 x 6 | 54 |
| 42 x 30 x 6 | B442H4 | 42 x 30 x 6 | 64 |
| 48 x 36 x 6 | B448H4 | 48 x 36 x 6 | 74 |
Extended Depth Enclosures (D)
| Enclosure Size (H x W x D) | Catalog # | Dimensions (in.) | Weight (lbs.) |
|---|---|---|---|
| 12 x 12 x 8 | B412D4 | 12 x 12 x 8 | 22 |
| 16 x 12 x 8 | B416D4 | 16 x 12 x 8 | 26 |
| 16 x 16 x 8 | B416D4 | 16 x 16 x 8 | 30 |
| 20 x 16 x 8 | B420D4 | 20 x 16 x 8 | 34 |
| 24 x 16 x 8 | B424D4 | 24 x 16 x 8 | 38 |
| 24 x 20 x 8 | B424D4 | 24 x 20 x 8 | 42 |
| 30 x 20 x 8 | B430D4 | 30 x 20 x 8 | 48 |
| 36 x 24 x 8 | B436D4 | 36 x 24 x 8 | 58 |
| 42 x 30 x 8 | B442D4 | 42 x 30 x 8 | 68 |
| 48 x 36 x 8 | B448D4 | 48 x 36 x 8 | 78 |
Accessories
| Accessory | Catalog # | Description |
|---|---|---|
| Mounting Brackets | B4MB | Wall-mounting brackets for standard enclosures. |
| Door Hinges | B4DH | Replacement door hinges for Type 4 enclosures. |
| Door Latches | B4DL | Replacement door latches for Type 4 enclosures. |
| Grounding Kits | B4GK | Grounding kits for secure electrical grounding. |
| Ventilation Kits | B4VK | Ventilation kits for heat dissipation in enclosed environments. |
Technical Specifications
- Material: Cold-rolled steel with powder-coated finish.
- Protection Rating: Type 4 (UL 50), NEMA 4.
- Temperature Range: -20°C to +40°C (-4°F to +104°F).
- Door Seal: Neoprene gasket for a tight seal.
- Mounting: Wall-mounted or free-standing options available.
Certifications
- UL Listed: Type 4 (UL 50).
- NEMA 4: Protects against rain, sleet, snow, dust, and windblown dust.
Additional Features
- Gasketed Door: Ensures a tight seal for protection against environmental elements.
- Extended Depth: Available for enclosures requiring additional space for wiring and components.
- Mounting Options: Wall-mounted or free-standing configurations.
This full data table provides a comprehensive overview of the B-Line Series Type 4 Panel Enclosures, including product details, sizes, materials, and ordering information. It is designed to help customers easily select and order the appropriate enclosure for their needs.
