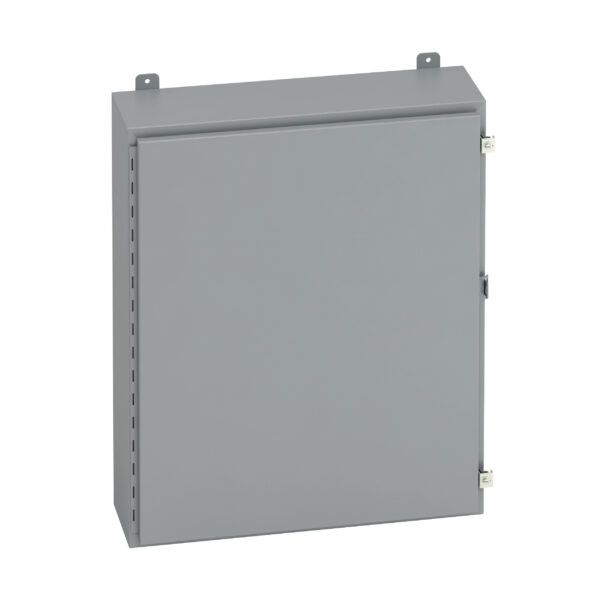

The B-Line Series Type 12 Panel Enclosures are designed for indoor use in non-hazardous locations. They provide a robust and secure environment for electrical components, offering protection against dust, dirt, and light splashing of liquids. Below is the full data table for the B-Line Series Type 12 Panel Enclosures, including product details, sizes, materials, and ordering information.
Description
Product Overview
- Applications: Indoor use in non-hazardous locations, electrical panel enclosures, control panels, and instrumentation.
- Certifications: UL Listed, Type 12 (UL 50), NEMA 12.
- Materials: Cold-rolled steel with a durable powder-coated finish.
- Protection: Protects against dust, dirt, and light splashing of liquids.
- Mounting: Wall-mounted or free-standing options available.
Enclosure Types
| Type | Description |
|---|---|
| Standard Enclosures | Wall-mounted or free-standing, available in various sizes and configurations. |
| Extended Depth | Enclosures with extended depth for additional space for wiring and components. |
| Gasketed Door | Ensures a tight seal for protection against dust and light splashing of liquids. |
Material and Finish
- Material: Cold-rolled steel.
- Finish: Durable powder-coated finish (standard color: light gray).
- Gasket: Neoprene gasket for a tight seal.
Ordering Information
The catalog numbers for B-Line Series Type 12 Panel Enclosures are structured as follows:
Example Part Number: B1212H12
| Part Number Section | Description |
|---|---|
| B12 | Series (B-Line Series Type 12) |
| 12 | Size (Height x Width in inches) |
| H | Depth (H = Standard depth, D = Extended depth) |
| 12 | Door type (12 = Gasketed door) |
Enclosure Sizes and Catalog Numbers
Below is the complete list of Catalog Numbers for B-Line Series Type 12 Panel Enclosures, organized by size and depth.
Standard Depth Enclosures (H)
| Enclosure Size (H x W x D) | Catalog # | Dimensions (in.) | Weight (lbs.) |
|---|---|---|---|
| 12 x 12 x 6 | B1212H12 | 12 x 12 x 6 | 15 |
| 16 x 12 x 6 | B1612H12 | 16 x 12 x 6 | 18 |
| 16 x 16 x 6 | B1616H12 | 16 x 16 x 6 | 22 |
| 20 x 16 x 6 | B2016H12 | 20 x 16 x 6 | 26 |
| 24 x 16 x 6 | B2416H12 | 24 x 16 x 6 | 30 |
| 24 x 20 x 6 | B2420H12 | 24 x 20 x 6 | 34 |
| 30 x 20 x 6 | B3020H12 | 30 x 20 x 6 | 40 |
| 36 x 24 x 6 | B3624H12 | 36 x 24 x 6 | 50 |
| 42 x 30 x 6 | B4230H12 | 42 x 30 x 6 | 60 |
| 48 x 36 x 6 | B4836H12 | 48 x 36 x 6 | 70 |
Extended Depth Enclosures (D)
| Enclosure Size (H x W x D) | Catalog # | Dimensions (in.) | Weight (lbs.) |
|---|---|---|---|
| 12 x 12 x 8 | B1212D12 | 12 x 12 x 8 | 18 |
| 16 x 12 x 8 | B1612D12 | 16 x 12 x 8 | 22 |
| 16 x 16 x 8 | B1616D12 | 16 x 16 x 8 | 26 |
| 20 x 16 x 8 | B2016D12 | 20 x 16 x 8 | 30 |
| 24 x 16 x 8 | B2416D12 | 24 x 16 x 8 | 34 |
| 24 x 20 x 8 | B2420D12 | 24 x 20 x 8 | 38 |
| 30 x 20 x 8 | B3020D12 | 30 x 20 x 8 | 44 |
| 36 x 24 x 8 | B3624D12 | 36 x 24 x 8 | 54 |
| 42 x 30 x 8 | B4230D12 | 42 x 30 x 8 | 64 |
| 48 x 36 x 8 | B4836D12 | 48 x 36 x 8 | 74 |
Accessories
| Accessory | Catalog # | Description |
|---|---|---|
| Mounting Brackets | B12MB | Wall-mounting brackets for standard enclosures. |
| Door Hinges | B12DH | Replacement door hinges for Type 12 enclosures. |
| Door Latches | B12DL | Replacement door latches for Type 12 enclosures. |
| Grounding Kits | B12GK | Grounding kits for secure electrical grounding. |
| Ventilation Kits | B12VK | Ventilation kits for heat dissipation in enclosed environments. |
Technical Specifications
- Material: Cold-rolled steel with powder-coated finish.
- Protection Rating: Type 12 (UL 50), NEMA 12.
- Temperature Range: -20°C to +40°C (-4°F to +104°F).
- Door Seal: Neoprene gasket for a tight seal.
- Mounting: Wall-mounted or free-standing options available.
Certifications
- UL Listed: Type 12 (UL 50).
- NEMA 12: Protects against dust, dirt, and light splashing of liquids.
Additional Features
- Gasketed Door: Ensures a tight seal for protection against dust and light splashing of liquids.
- Extended Depth: Available for enclosures requiring additional space for wiring and components.
- Mounting Options: Wall-mounted or free-standing configurations.
This full data table provides a comprehensive overview of the B-Line Series Type 12 Panel Enclosures, including product details, sizes, materials, and ordering information. It is designed to help customers easily select and order the appropriate enclosure for their needs.
