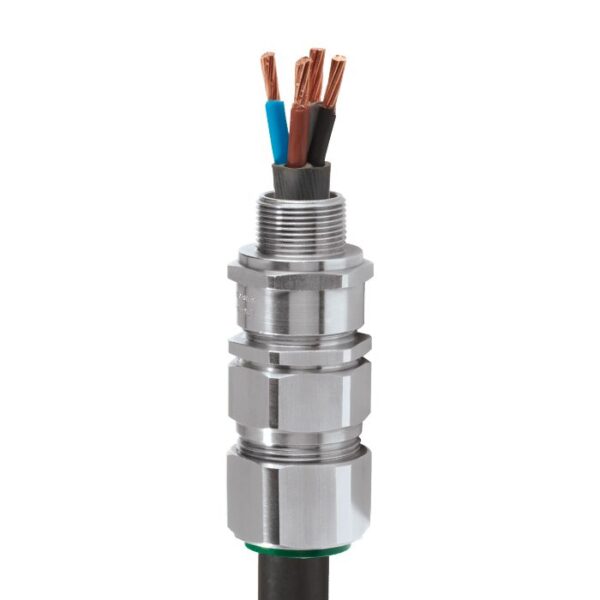

The E1FW Explosive Atmosphere Cable Gland by CMP Products is ATEX/IECEx certified, providing secure cable management solutions for hazardous environments. Designed for explosive atmospheres, this durable gland ensures safety and compliance with industry standards. Explore its features and applications today.

Category: Tag:
Description
Cable Gland Size Available Entry Threads ‘C’ (Alternate Metric Thread Lengths Available) Cable Bedding Diameter ‘A’ Overall
Cable
Diameter
‘B’		 Armour Range Across
Flats
‘D’		 Across
Corners
‘D’		 Protrusion
Length ‘F’		 Combined Ordering Reference
(*Brass Metric)		 Shroud Cable
Gland
Weight
(Kgs)
Standard Option
Metric Thread Length (Metric) ‘E’ NPT Thread Length
(NPT) ‘E’		 NPT Min Max Min Max Min Max Max Max Size Type Ordering
Suffix
20S16 M20 15.0 ½’ 19.9 ¾” 3.1 8.6 6.1 13.1 0.8 1.25 24.0 26.4 72.5 20S16 E1FW 1RA PVC04 0.16
20S M20 15.0 ½’ 19.9 ¾” 6.1 11.6 9.5 15.9 0.8 1.25 24.0 26.4 70.0 20S E1FW 1RA PVC04 0.15
20 M20 15.0 ½’ 19.9 ¾” 6.5 13.9 12.5 20.9 0.8 1.25 30.5 33.6 73.0 20 E1FW 1RA PVC06 0.21
25S M25 15.0 ¾’ 20.2 1″ 11.1 19.9 14.0 22.0 1.25 1.6 37.5 41.3 89.0 25S E1FW 1RA PVC09 0.33
25 M25 15.0 ¾’ 20.2 1″ 11.1 19.9 18.2 26.2 1.25 1.6 37.5 41.3 89.0 25 E1FW 1RA PVC09 0.33
32 M32 15.0 1′ 25.0 1 ¼” 17.0 26.2 23.7 33.9 1.6 2.0 46.0 50.6 86.0 32 E1FW 1RA PVC11 0.43
40 M40 15.0 1 ¼’ 25.6 1 ½” 22.0 32.1 27.9 40.4 1.6 2.0 55.0 60.5 90.0 40 E1FW 1RA PVC15 0.62
50S M50 15.0 1 ½’ 26.1 2″ 29.5 38.1 35.2 46.7 2.0 2.5 60.0 66.0 91.0 50S E1FW 1RA PVC18 0.75
50 M50 15.0 2′ 26.9 2 ½” 35.6 44.0 40.4 53.0 2.0 2.5 70.1 77.1 95.0 50 E1FW 1RA PVC21 0.95
63S M63 15.0 2′ 26.9 2 ½” 40.1 49.9 45.6 59.4 2.0 2.5 75.0 82.5 102.0 63S E1FW 1RA PVC23 1.34
63 M63 15.0 2 ½’ 39.9 3″ 47.2 55.9 54.6 65.8 2.0 2.5 80.0 88.0 104.0 63 E1FW 1RA PVC25 1.34
75S M75 15.0 2 ½’ 39.9 3″ 52.8 61.9 59.0 72.0 2.0 2.5 90.0 99.0 115.0 75S E1FW 1RA PVC28 2.11
75 M75 15.0 3′ 41.5 3 ½” 59.1 67.9 66.7 78.4 2.5 3.0 100.0 110.0 117.0 75 E1FW 1RA PVC30 2.42
90 M90 24.0 3 ½’ 42.8 4″ 66.6 78.6 76.2 90.3 3.2 4.0 114.3 125.4 147.0 90 E1FW 1RA PVC32 4.21
100 M100 24.0 3 ½’ 42.8 4″ 76.0 90.9 86.1 101.4 3.2 4.0 123.0 135.3 140.0 100 E1FW 1RA LSF33 4.45
115 M115 24.0 4″ 44.0 5″ 86.0 97.9 101.5 110.2 3.2 4.0 133.4 146.7 162.0 115 E1FW 1RA LSF34 6.19
130 M130 24.0 5″ 46.8 – 97.0 114.9 110.2 123.2 3.2 4.0 152.4 167.6 174.0 130 E1FW 1RA LSF35 8.34
Dimensions displayed in millimeters unless otherwise stated
