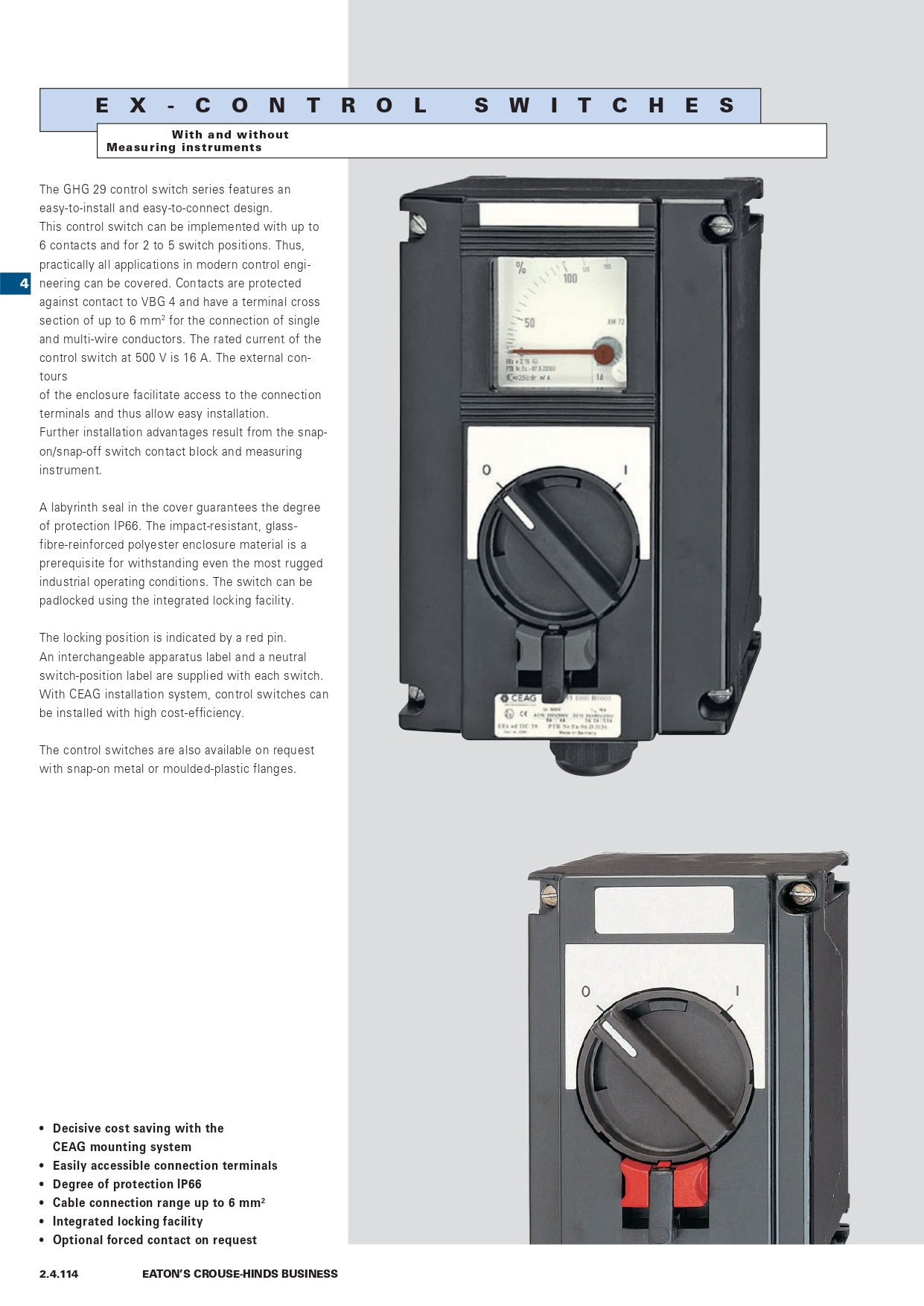

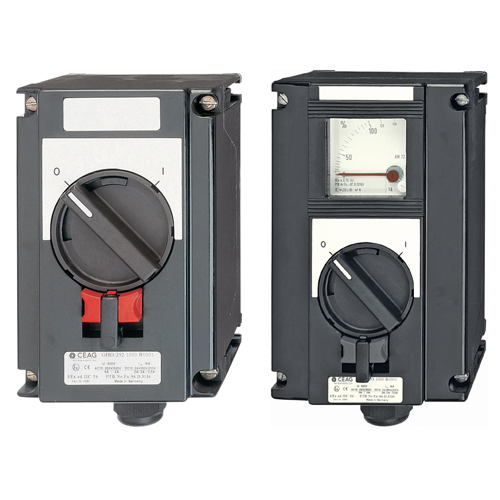

Crouse-Hinds series CEAG GHG29 Ex-protected control switches are available with up to six contacts and for 2 to 5 switch positions, making them an ideal solution for power control applications in hazardous and harsh areas.
Featuring snap-on/snap-off contact blocks and measuring instruments, along with a contoured enclosure that facilitates easy access to the connection terminals, the GHG29 has been designed for ease of installation. Additionally, a labyrinth seal in the cover provides IP66 ingress protection.

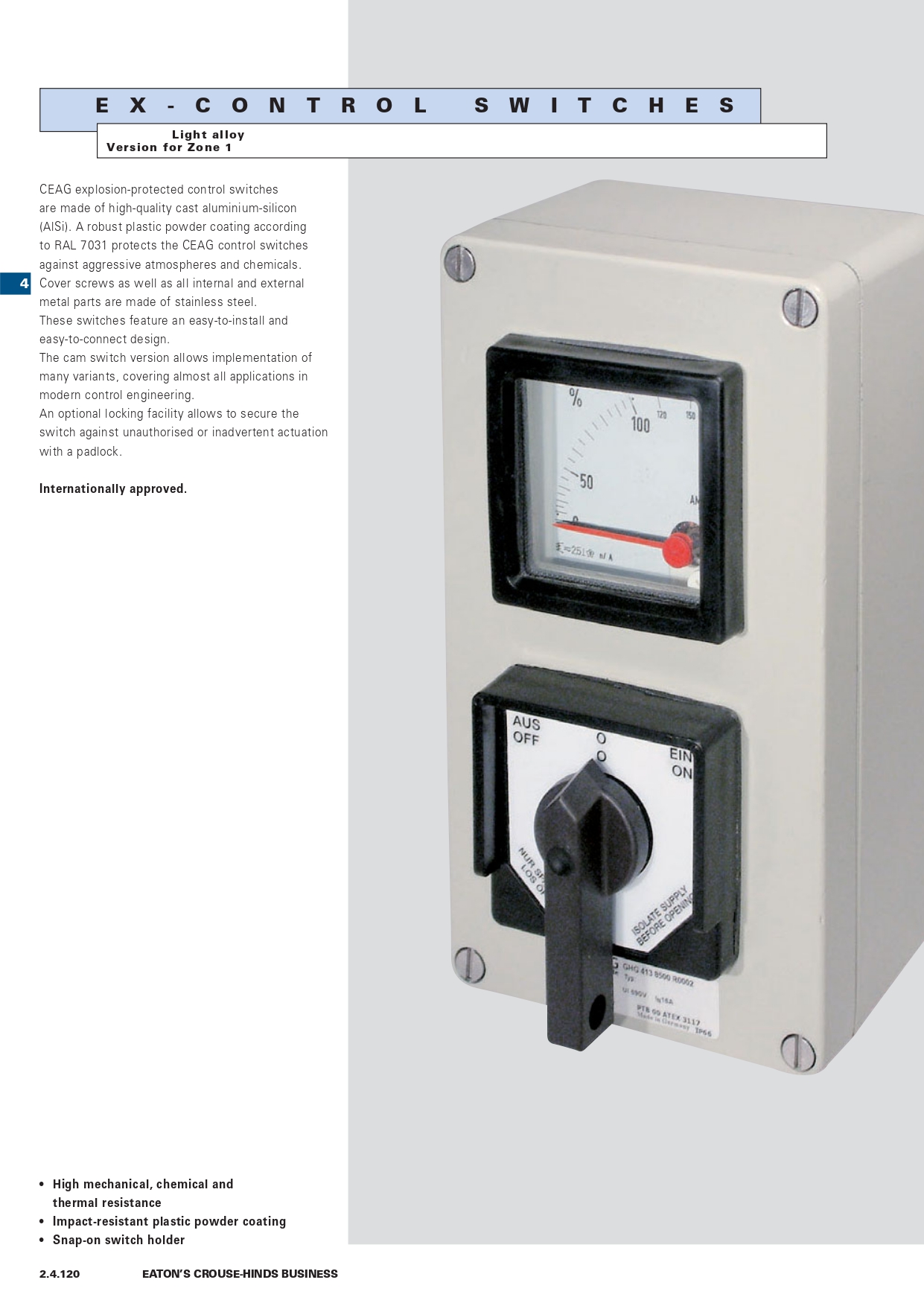

Available in impact-resistant fiberglass-reinforced polyester or powder coated cast aluminum, these control switches can withstand the most rugged hazardous and industrial operating conditions.
Description
Ordering information

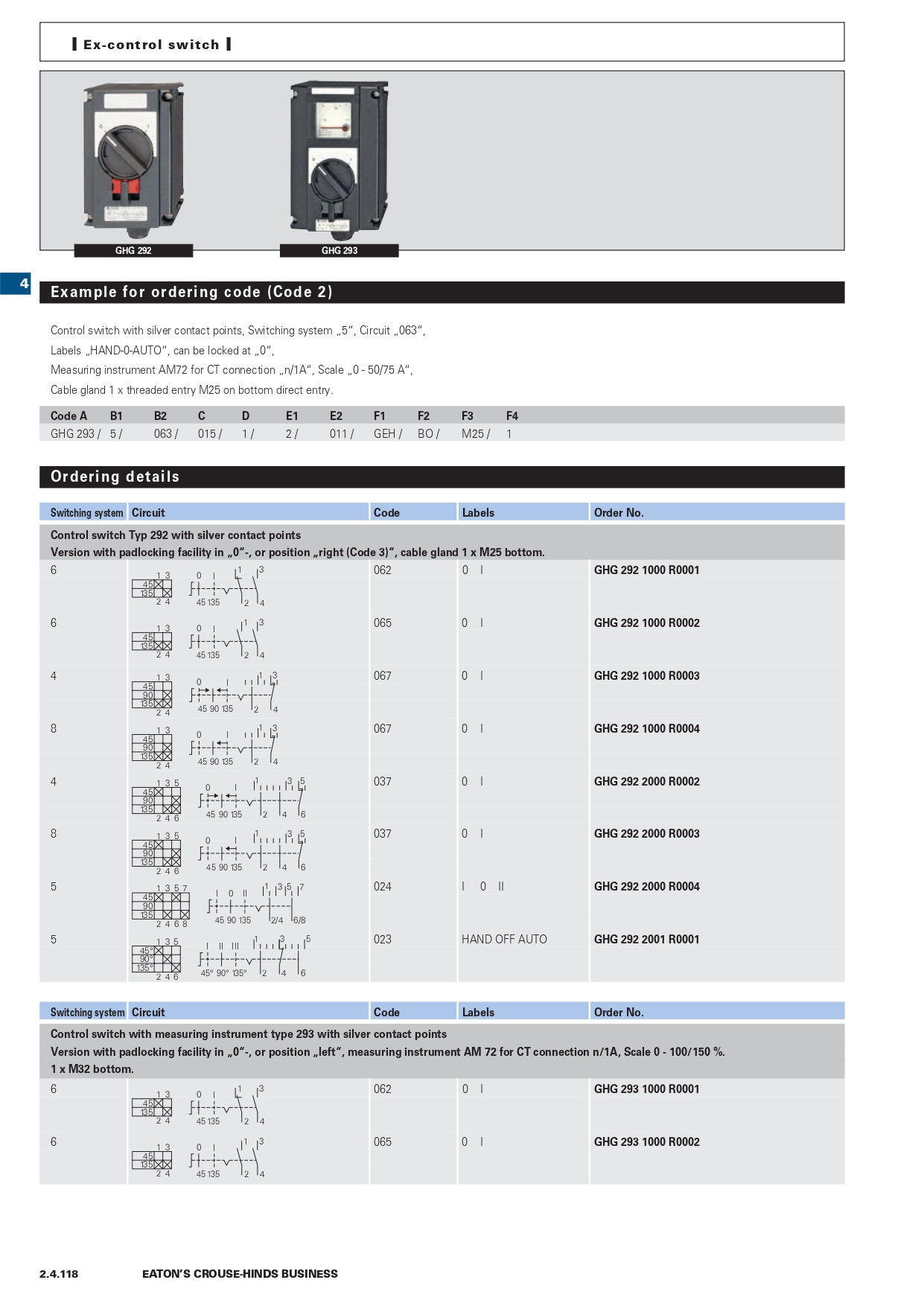

| Catalog number | Product description |
| GHG2921000R0001 | Ex-control station 292 with silver contacts, contact arrangement 6, code 62 |
| GHG2921000R0002 | Ex-control station 292 with silver contacts, contact arrangement 6, code 65 |
| GHG2921000R0003 | Ex-control station 292 with silver contacts, contact arrangement 4, code 67 |
| GHG2921000R0004 | Ex-control station 292 with silver contacts, contact arrangement 8, code 67 |
| GHG2922000R0002 | Ex-control station 292 with silver contacts, contact arrangement 4, code 37 |
| GHG2922000R0003 | Ex-control station 292 with silver contacts, contact arrangement 8, code 35 |
| GHG2922000R0004 | Ex-control station 292 with silver contacts, contact arrangement 5, code 24 |
| GHG2922001R0001 | Ex-control station 292 with silver contacts, contact arrangement 5, code 23 |
| GHG2931000R0001 | Ex-control station 293 with silver contacts, contact arrangement 6, code 62 |
| GHG2931000R0002 | Ex-control station 293 with measure instrument, with silver contacts, contact arrangement 6, code 65 |

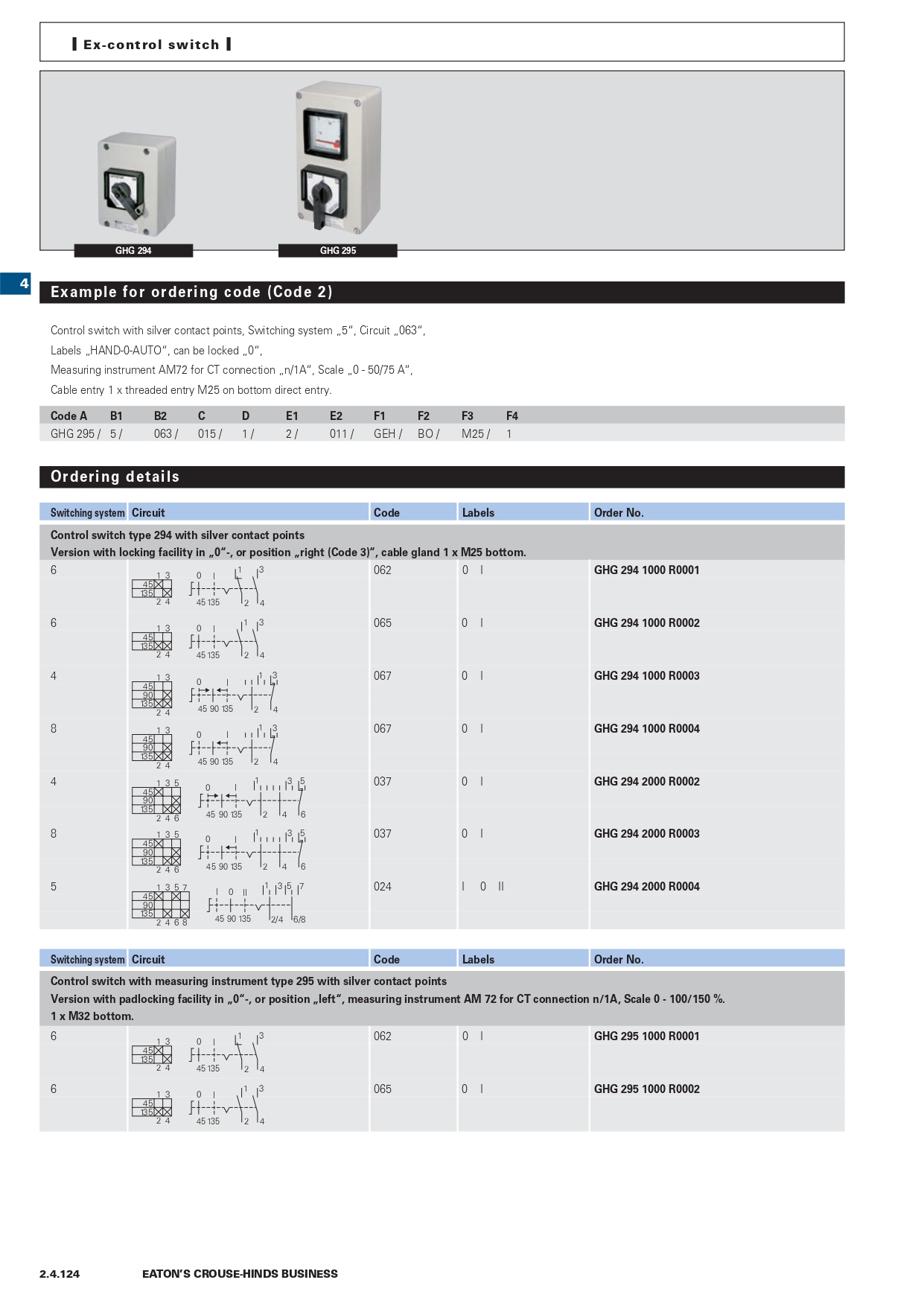

| GHG2941000R0001 | Ex-control station 294 with silver contacts, contact arrangement 6, code 62 |
| GHG2941000R0002 | Ex-control station 294 with silver contacts, contact arrangement 6, code 65 |
| GHG2941000R0003 | Ex-control station 294 with silver contacts, contact arrangement 4, code 67 |
| GHG2941000R0004 | Ex-control station 294 with silver contacts, contact arrangement 8, code 67 |
| GHG2942000R0002 | Ex-control station 294 with silver contacts, contact arrangement 8, code 35 |
| GHG2942000R0003 | Ex-control station 294 with silver contacts, contact arrangement 5, code 24 |
| GHG2942000R0004 | Ex-control station 294 with silver contacts, contact arrangement 5, code 23 |
| GHG2942001R0001 | Ex-control station 294 with silver contacts, contact arrangement 6, code 62 |
| GHG2951000R0001 | Ex-control station 295 with measure instrument, with silver contacts, contact arrangement 6, code 62 |
| GHG2951000R0002 | Ex-control station 295 with measure instrument, with silver contacts, contact arrangement 6, code 65 |
| GHG296060020 | Control switch GHG 29 enclosure mounting |
| GHG296062020 | Control switch GHG 29 enclosure mounting |
| GHG296065010 | Control switch GHG 29 enclosure mounting |

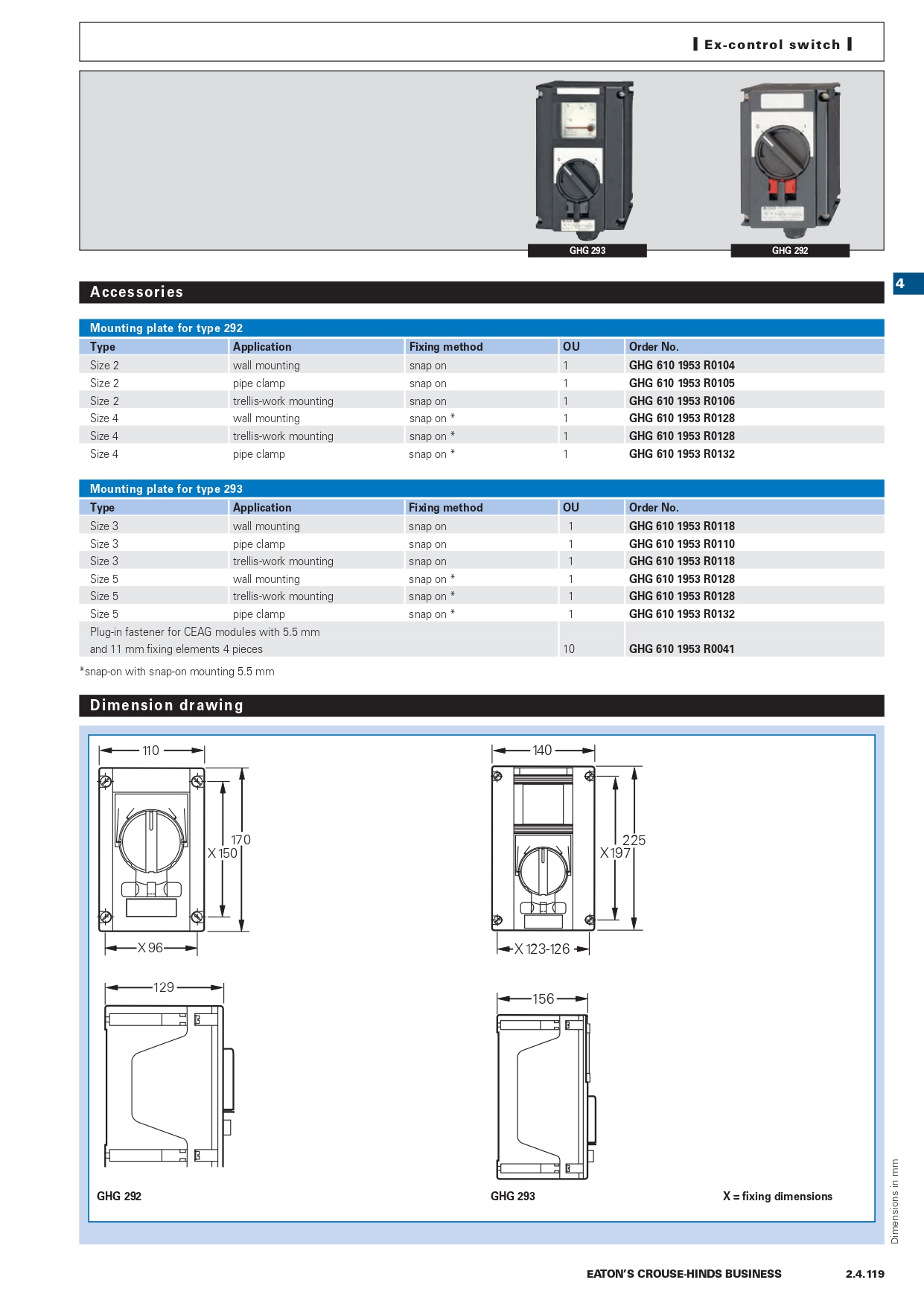

| GHG6101953R0104 | Mounting plates size 2 for wall mounting |
| GHG6101953R0105 | Mounting plates size 2 for pipe mounting |
| GHG6101953R0106 | Mounting plates size 2 for channel mounting |
| GHG6101953R0110 | Mounting plates size 3 for pipe mounting |
| GHG6101953R0118 | Mounting plates size 3 for wall mounting |
