Here is the full catalog number information for the CEAG GHG960 Ex-e/i Cable Glands presented in a table format:

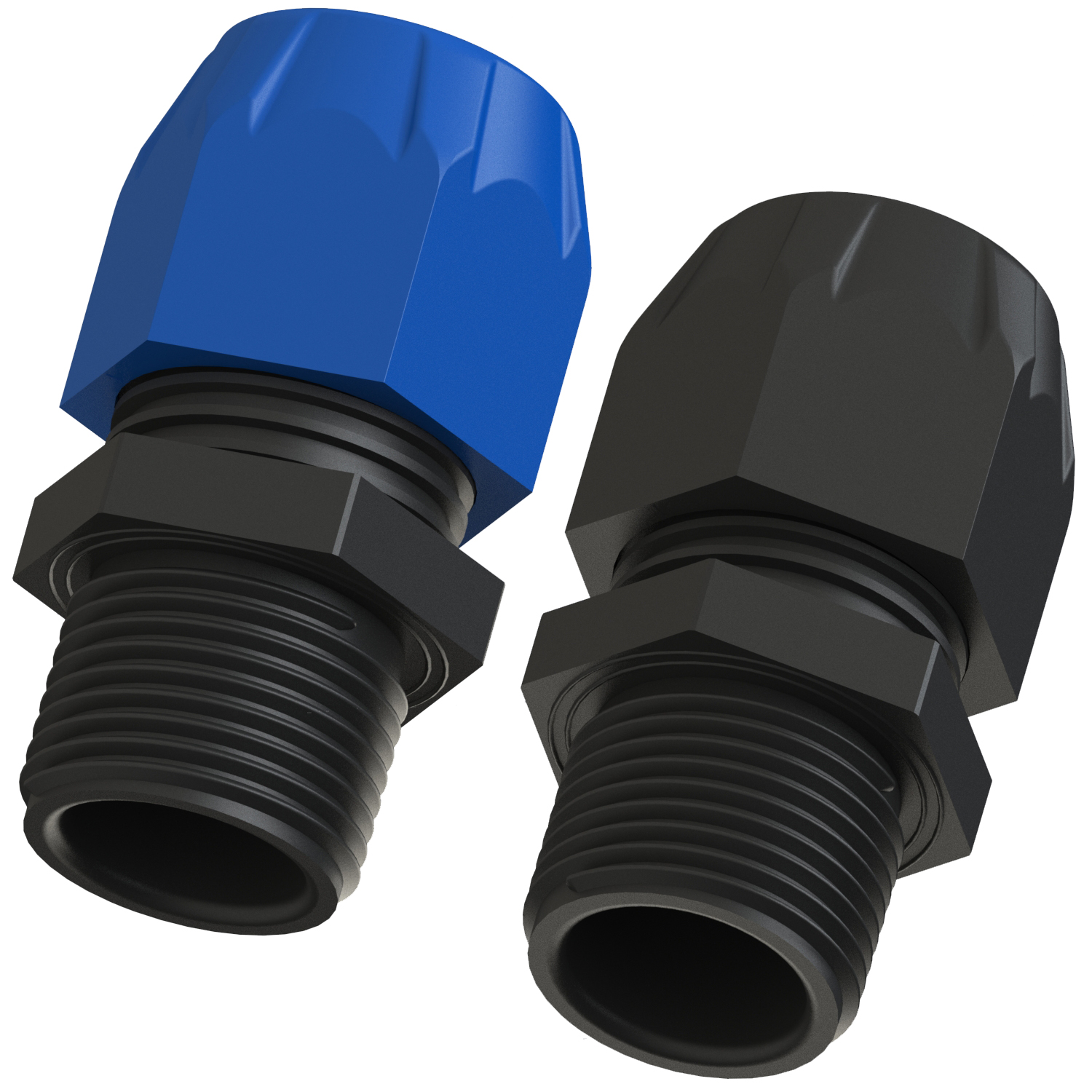

CEAG GHG960 Ex-e/i Cable Glands
Ex-e Cable Glands (Black) – Short Thread
| Thread Size |
Cable Ø Min – Max (mm) |
Seal 1+2 (mm) |
Seal 1 (mm) |
A/F (mm) |
L1 (mm) |
L2 (mm) |
Weight (g) |
Order Number |
| M16 x 1.5 |
4.0 – 6.0 |
6.0 – 10.0 |
– |
22 |
29.5 |
10 |
10.9 |
GHG 960 1959 R0002 |
| M20 x 1.5 |
6.0 – 7.5 |
7.5 – 11.0 |
– |
24 |
30.0 |
10 |
14.1 |
GHG 960 1959 R0003 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 17.0 |
– |
29 |
34.0 |
10 |
19.8 |
GHG 960 1959 R0004 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 15.0 |
– |
29 |
34.0 |
10 |
19.8 |
GHG 960 1959 R0005 |
| M32 x 1.5 |
12.0 – 16.0 |
16.0 – 21.0 |
– |
36 |
42.0 |
10 |
33.9 |
GHG 960 1959 R0005 |
Ex-i Cable Glands (Blue) – Short Thread
| Thread Size |
Cable Ø Min – Max (mm) |
Seal 1+2 (mm) |
Seal 1 (mm) |
A/F (mm) |
L1 (mm) |
L2 (mm) |
Weight (g) |
Order Number |
| M16 x 1.5 |
4.0 – 6.0 |
6.0 – 10.0 |
– |
22 |
29.5 |
10 |
10.9 |
GHG 960 1959 R0102 |
| M20 x 1.5 |
6.0 – 7.5 |
7.5 – 11.0 |
– |
24 |
30.0 |
10 |
14.1 |
GHG 960 1959 R0103 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 17.0 |
– |
29 |
34.0 |
10 |
19.8 |
GHG 960 1959 R0104 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 15.0 |
– |
29 |
34.0 |
10 |
19.8 |
GHG 960 1959 R0105 |
| M32 x 1.5 |
12.0 – 16.0 |
16.0 – 21.0 |
– |
36 |
42.0 |
10 |
33.9 |
GHG 960 1959 R0105 |
Ex-e Cable Glands (Black) – Long Thread
| Thread Size |
Cable Ø Min – Max (mm) |
Seal 1+2 (mm) |
Seal 1 (mm) |
A/F (mm) |
L1 (mm) |
L2 (mm) |
Weight (g) |
Order Number |
| M16 x 1.5 |
4.0 – 6.0 |
6.0 – 10.0 |
– |
22 |
29.5 |
15 |
10.9 |
GHG 960 1959 R0022 |
| M20 x 1.5 |
6.0 – 7.5 |
7.5 – 11.0 |
– |
24 |
30.0 |
15 |
14.1 |
GHG 960 1959 R0023 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 17.0 |
– |
29 |
34.0 |
15 |
19.8 |
GHG 960 1959 R0024 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 15.0 |
– |
29 |
34.0 |
15 |
19.8 |
GHG 960 1959 R0025 |
| M32 x 1.5 |
12.0 – 16.0 |
16.0 – 21.0 |
– |
36 |
42.0 |
15 |
33.9 |
GHG 960 1959 R0026 |
| M40 x 1.5 |
17.0 – 21.0 |
21.0 – 28.0 |
– |
46 |
46.0 |
15 |
59.2 |
GHG 960 1959 R0027 |
| M50 x 1.5 |
22.0 – 31.0 |
31.0 – 38.0 |
– |
60 |
54.0 |
18 |
110.1 |
GHG 960 1959 R0028 |
| M63 x 1.5 |
28.0 – 35.0 |
35.0 – 44.0 |
– |
65 |
54.0 |
18 |
122.2 |
GHG 960 1959 R0028 |
Ex-i Cable Glands (Blue) – Long Thread
| Thread Size |
Cable Ø Min – Max (mm) |
Seal 1+2 (mm) |
Seal 1 (mm) |
A/F (mm) |
L1 (mm) |
L2 (mm) |
Weight (g) |
Order Number |
| M16 x 1.5 |
4.0 – 6.0 |
6.0 – 10.0 |
– |
22 |
29.5 |
15 |
10.9 |
GHG 960 1959 R0122 |
| M20 x 1.5 |
6.0 – 7.5 |
7.5 – 11.0 |
– |
24 |
30.0 |
15 |
14.1 |
GHG 960 1959 R0123 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 17.0 |
– |
29 |
34.0 |
15 |
19.8 |
GHG 960 1959 R0124 |
| M25 x 1.5 |
9.0 – 13.0 |
13.0 – 15.0 |
– |
29 |
34.0 |
15 |
19.8 |
GHG 960 1959 R0125 |
| M32 x 1.5 |
12.0 – 16.0 |
16.0 – 21.0 |
– |
36 |
42.0 |
15 |
33.9 |
GHG 960 1959 R0126 |
| M40 x 1.5 |
17.0 – 21.0 |
21.0 – 28.0 |
– |
46 |
46.0 |
15 |
59.2 |
GHG 960 1959 R0126 |
| M50 x 1.5 |
22.0 – 31.0 |
31.0 – 38.0 |
– |
60 |
54.0 |
18 |
110.1 |
GHG 960 1959 R0127 |
| M63 x 1.5 |
28.0 – 35.0 |
35.0 – 44.0 |
– |
65 |
72.0 |
18 |
122.2 |
GHG 960 1959 R0128 |
Blanking Plugs
| Thread Size |
A/F (mm) |
L1 (mm) |
Weight (g) |
Order Number |
| M16 |
20.7 |
7.0 |
4 |
GHG 960 1948 R0002 |
| M20 |
20.7 |
8.5 |
5 |
GHG 960 1948 R0003 |
| M25 |
21.5 |
11.0 |
5 |
GHG 960 1948 R0004 |
| M32 |
24.5 |
14.0 |
8 |
GHG 960 1948 R0005 |
| M40 |
25.0 |
20.0 |
10 |
GHG 960 1948 R0006 |
| M50 |
32.1 |
26.0 |
33 |
GHG 960 1948 R0007 |
| M63 |
38.5 |
34.0 |
108 |
GHG 960 1948 R0008 |
This table provides a clear overview of the catalog numbers for the CEAG GHG960 Ex-e/i Cable Glands and Blanking Plugs, making it easier to identify the correct part for your application.
